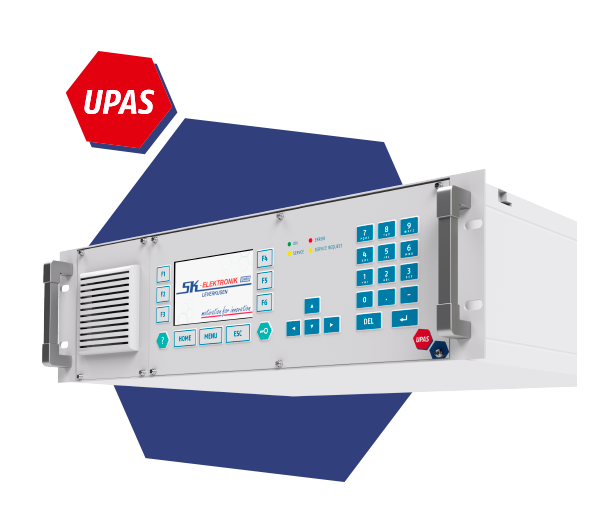

UPAS. Universal Platform for Analytical Systems.

Measurement System

• New digital pressure control (higher accuracy and long-term stability)
• Autonomous gas distributor block (independent from the system)
• Optional dual detector for continuous measurement of CH4 and THC
• All devices are oxygen-compensated (oxygen cross-sensitivity)
• Integrated dilution probe in the detector
• Integrated flame arrestor in the detector
• Measurement data acquisition via temperature - FTD (LEL measurement with low response factor)
• Zero gas and combustion air via activated carbon filter and thermal catalyst
• Own heated sampling system (IP65)
• Heated line up to 40 meters

Communication

• 2 external inputs according to NAMUR
• 2 measurement outputs (integrated status/alarm card)
  • 2 Galvanically isolated outputs 0(4)-20mA
  • 4 Alarm contacts
• Interfaces
  • Ethernet; EIA 422/EIA 485/EIA 232
  • Alternatively CAN Bus
• Remote Control (network-capable)
• USB Port Type B (Service Interface)
• USB Port Type A (measurement data output USB stick/USB printer)

Service

• Consulting for applications
  • FID device family (IP40/IP65)
  • Measurement tasks in Zone 1 and 2
  • Continuous methane-free measurement
  • LEL measurement
  • Measurement of organic C in vapor
  • Measurement of organic C in wastewater
  • Measurement of organic C in hydrochloric acid
  • Complete systems on mounting plate
  • Turnkey analysis houses (design/production)
• Custom-made products according to customer requirements
• Individual approvals/certification
• On-site service and commissioning
• Maintenance contracts
• Training platform

Maintenance / Service

• Devices operable without opening the housing
• Replaceable sample gas filter
• Pluggable solenoid valves
• No conversion to external combustion air/zero gas necessary (integrated standard)
• Air jet injector accessible from outside

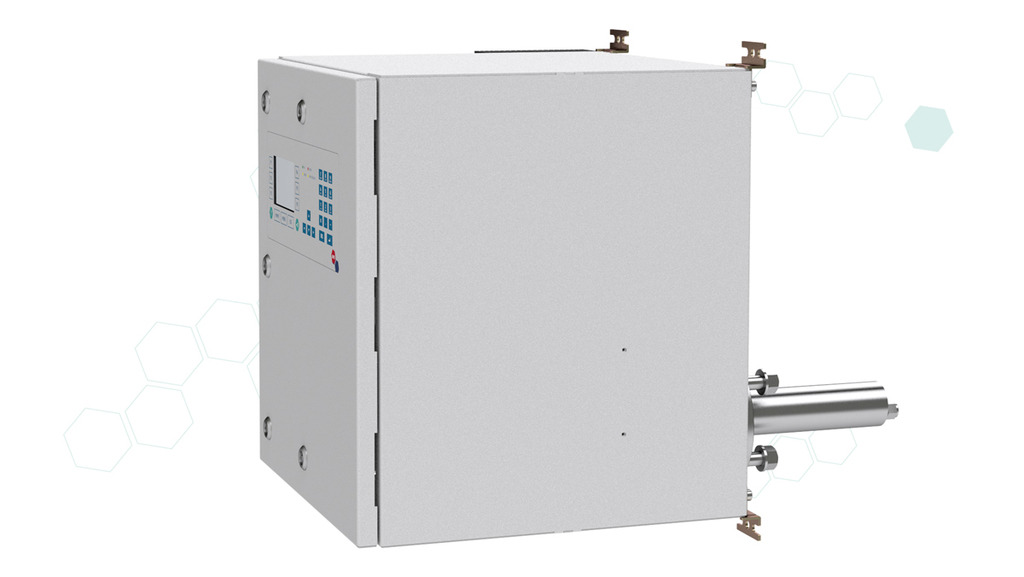

• Automatic closure of the sample to the system (MK)
• Protective tube over the probe (stainless steel) for easy disassembly (MK)
